we are the riverina supplier for
biax foundations
100% recycled material.
Eco-friendly and sustainable.
Simplified installation process.
Absolute Mesh & Steel is an authorised BIAX dealer, supplying the BIAX Foundations system throughout the Riverina. Biax Foundations revolutionizes the construction industry with a slab system designed for efficiency and sustainability. Made from 100% recycled plastic, Biax reduces environmental impact while meeting Australian standards for quality and safety. This advanced system simplifies installation, reduces waste, and supports a greener tomorrow.
Benefits of Biax foundations
Biax significantly reduces the use of concrete and construction waste, adhering strictly to Australian standards. It supports sustainable construction by using 100% recycled plastic, thus contributing to environmentally-friendly building practices.
FAQs:
What is Biax? Biax is an innovative void former system designed to create lightweight, sustainable concrete slabs using 100% recycled materials.
How does Biax benefit construction? By reducing the need for excessive concrete, Biax not only simplifies the installation process but also lowers environmental impact.
Why choose Biax? Biax stands out for being eco-friendly, cost-effective, and fully compliant with industry standards, making it a smart choice for sustainable construction.
Applications: Ideal for residential, commercial, and industrial projects, Biax provides versatility in construction while promoting sustainability.
ready to know more?:
If you're interested in learning more about Biax or need assistance with your construction project, Absolute Mesh and Steel is here to help. Reach out to us for details on how Biax can fit into your plans.
BIAX System Components
As an authorised BIAX dealer, AMS stocks the full range of BIAX pods and system components for different slab configurations and site requirements.

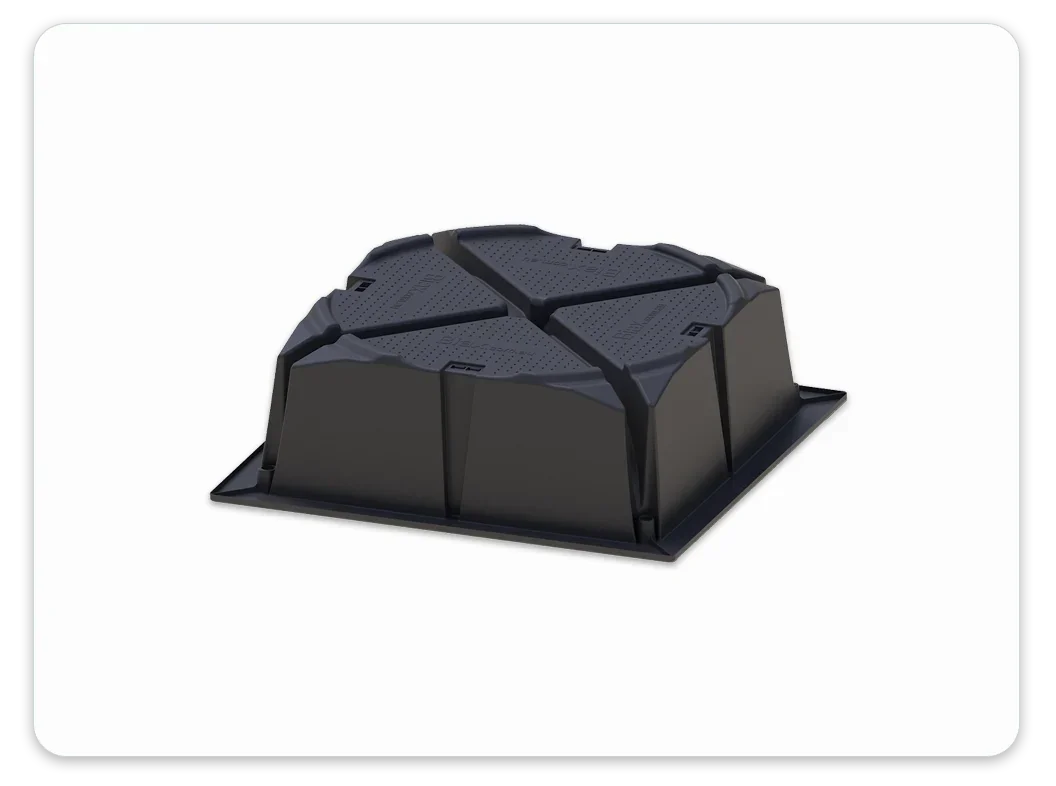

BIAX-215
Main pod for 300mm slabs, used across general slab areas on sites with soil classifications up to H2.
750 × 750 × 227mm

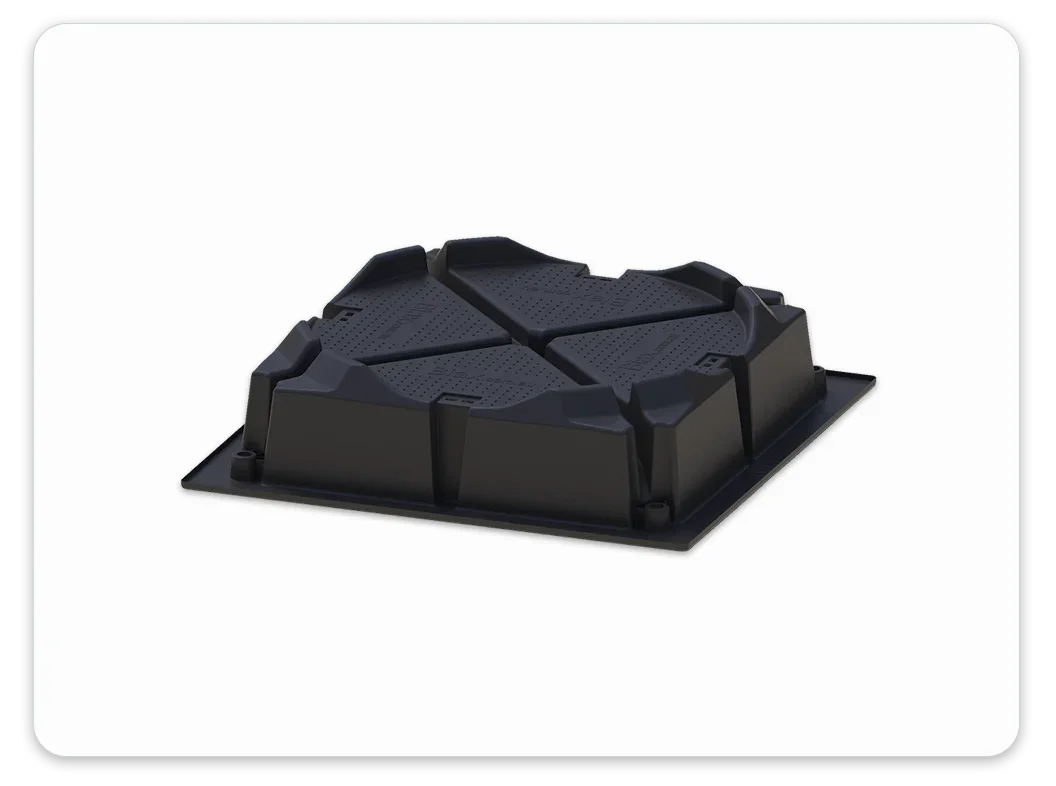

BIAX-145
For 230mm slabs and step-down areas including patios, alfrescos, garages and wet areas.
750 × 750 × 180mm

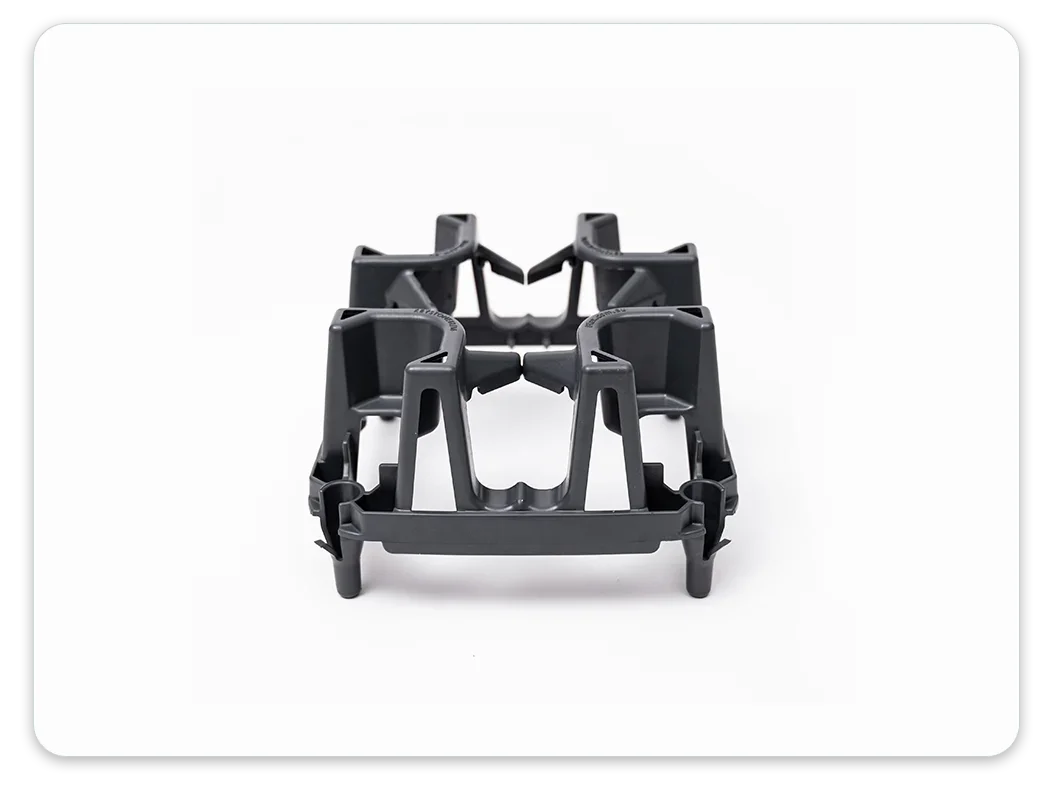

BIAX KEYSTONE
Connects BIAX-215 and BIAX-145 pods together to form the modular grid used throughout the BIAX system.
173 × 173 × 106mm

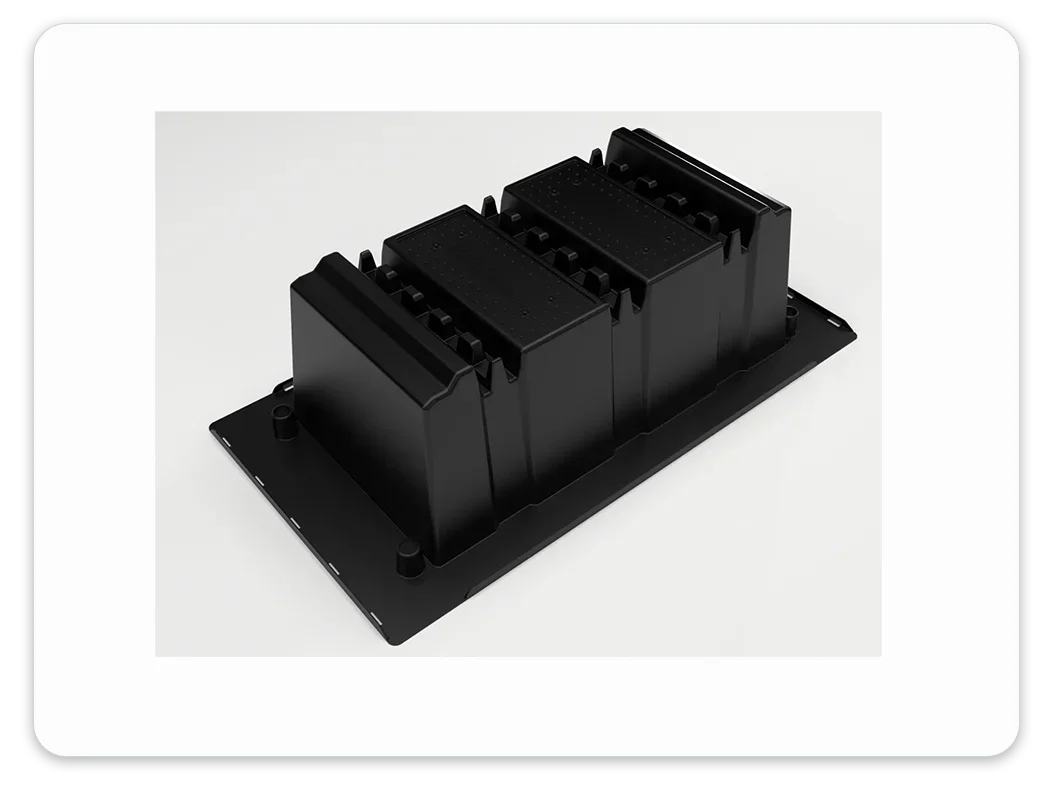

BIAX 215 MINI POD
Designed for tighter areas such as edge beams, reducing the need to cut standard pods on site.
750 × 400 × 226mm

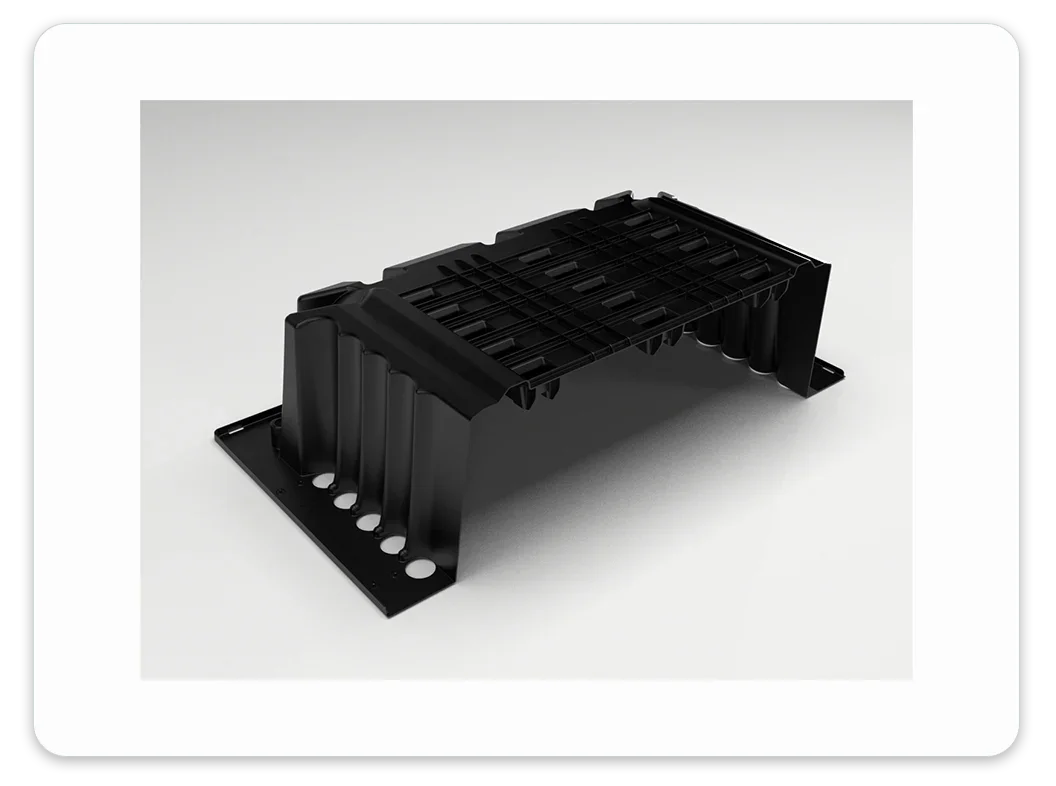

BIAX MINI ADJUSTABLE
An adjustable option for tighter areas such as edge beams and step-downs, helping accommodate different slab layouts without on-site cutting.
742 × 427 × 228mm

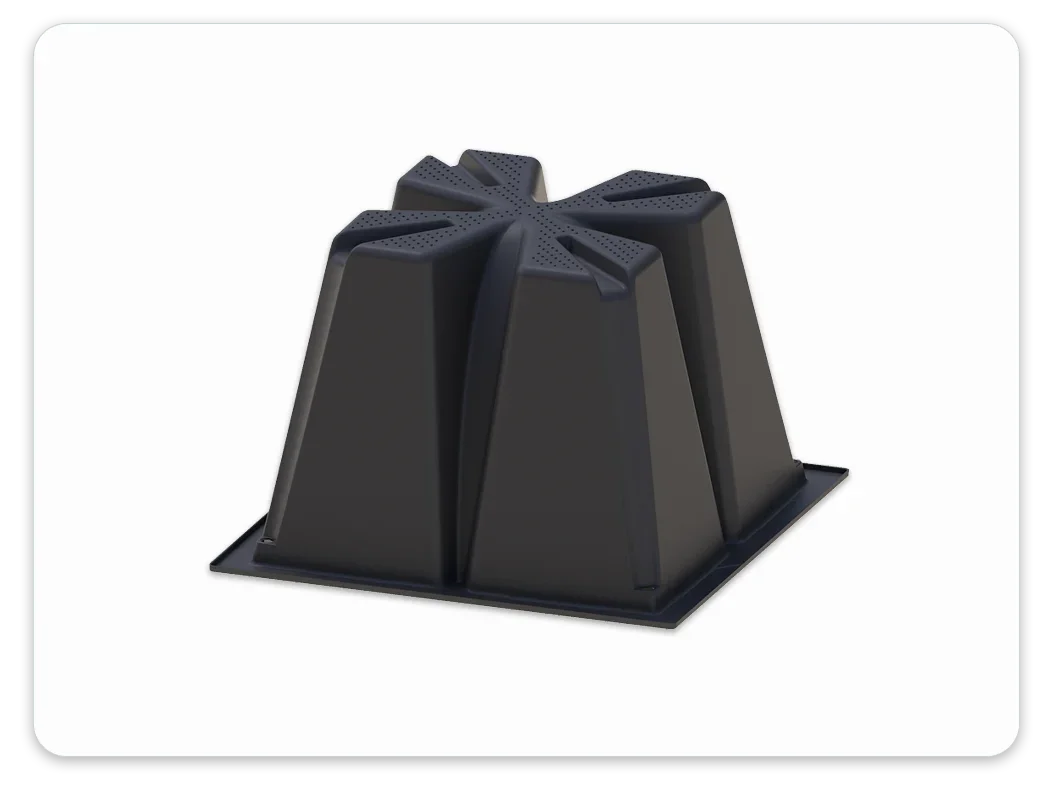

BIAX-500
Designed for 585mm slabs requiring greater stiffness and load capacity, including multi-storey applications and residential slabs on expansive E-Class soils.
750 × 750 × 500mm

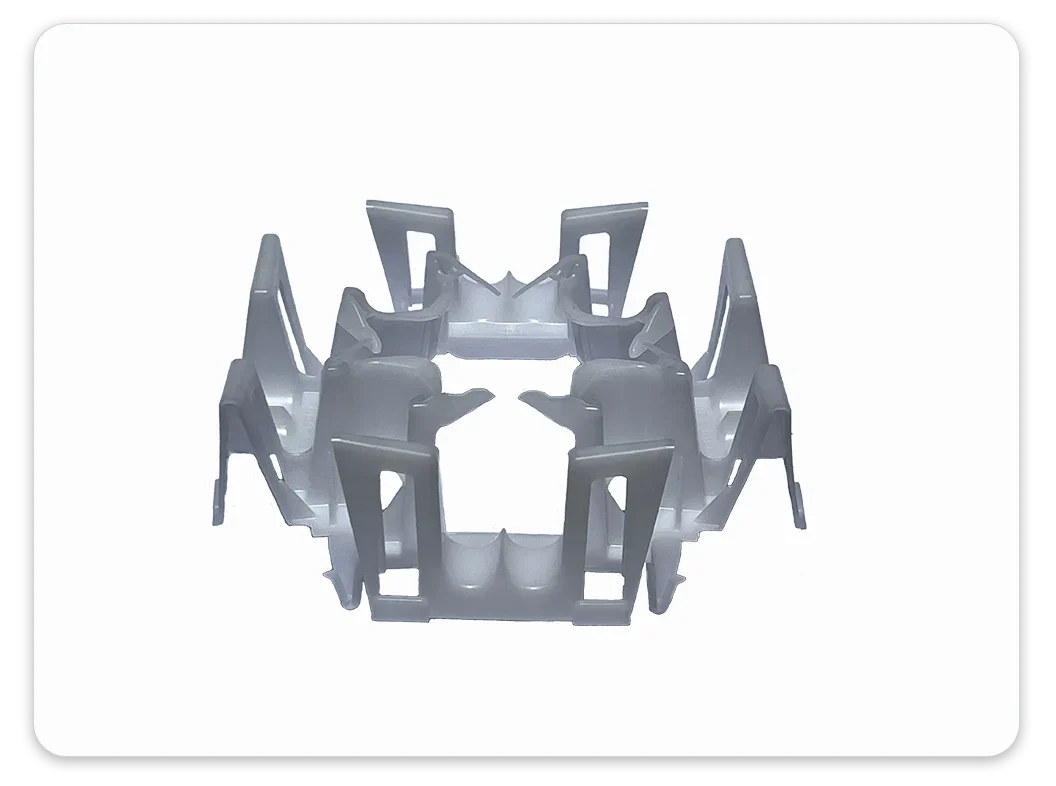

BIAX 500 KEYSTONE
Connects BIAX-500 pods together to form the modular grid for the BIAX-500 system.
265 × 265 × 115mm

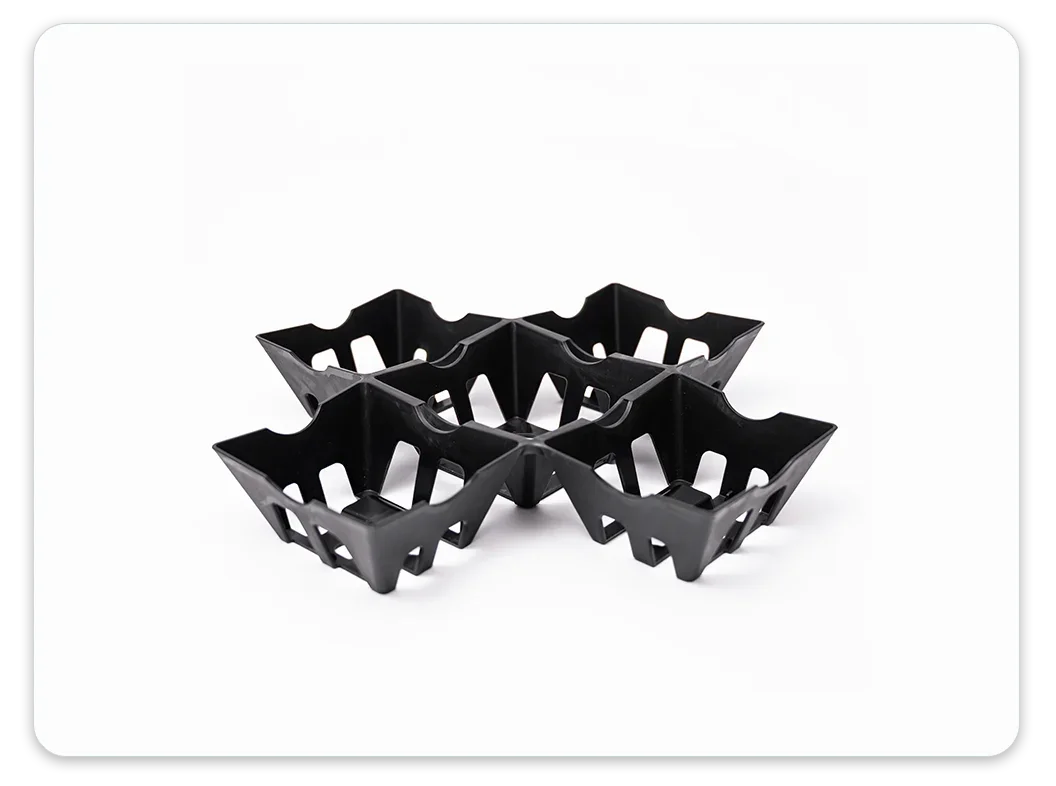

AUSCHAIR
A combination spacer designed for use with BIAX pods and reinforcing steel across a range of slab applications.
300 × 300 × 50mm
BIAX Ancillary Products
AMS also stocks a range of ancillary products used alongside the BIAX foundation system, including reflective film, tape and drainage solutions.

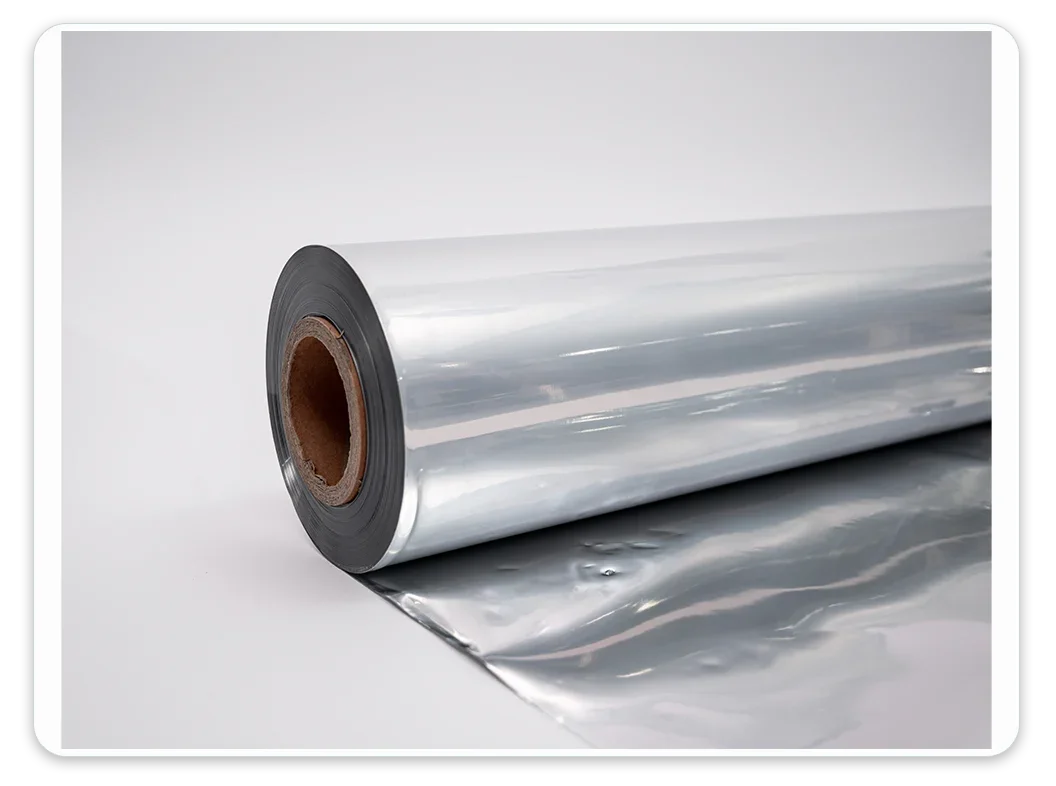

BIAX REFLECTIVE THERMAL DPM FILM
Underslab vapour barrier used within the BIAX foundation system to help improve the slab’s thermal performance.
50m × 1.85m

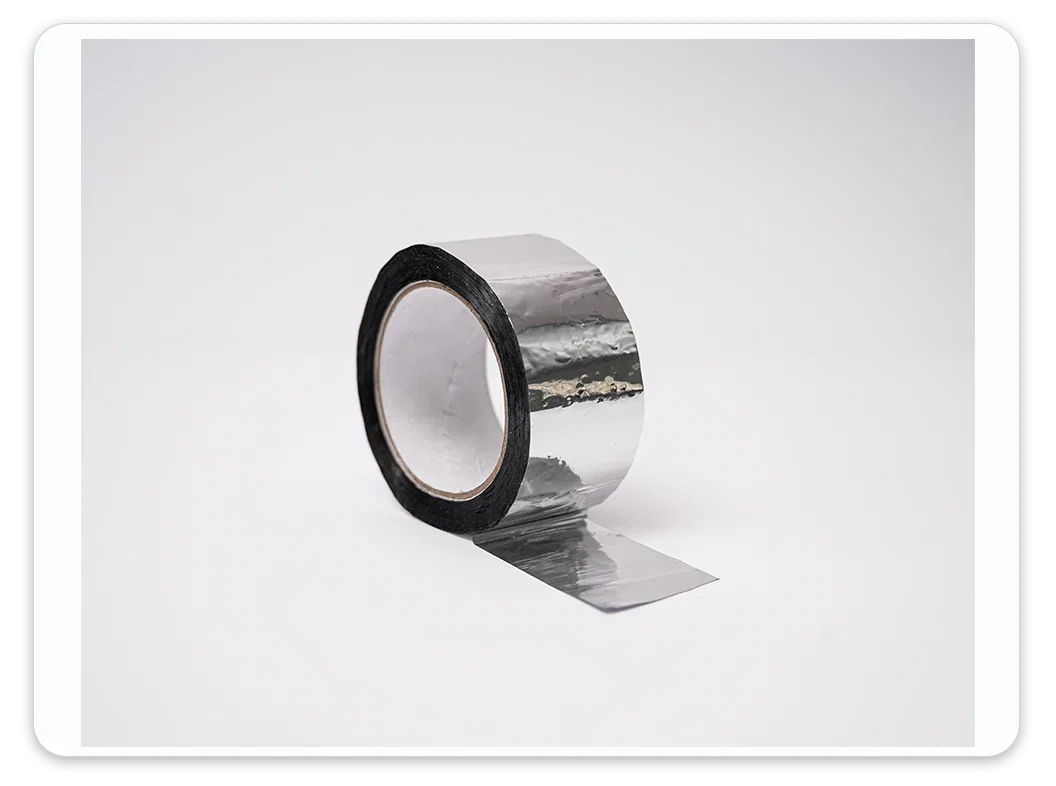

BIAX REFLECTIVE TAPE
Used with BIAX Reflective Thermal DPM Film as part of the underslab system to support improved thermal performance.
50m × 50mm

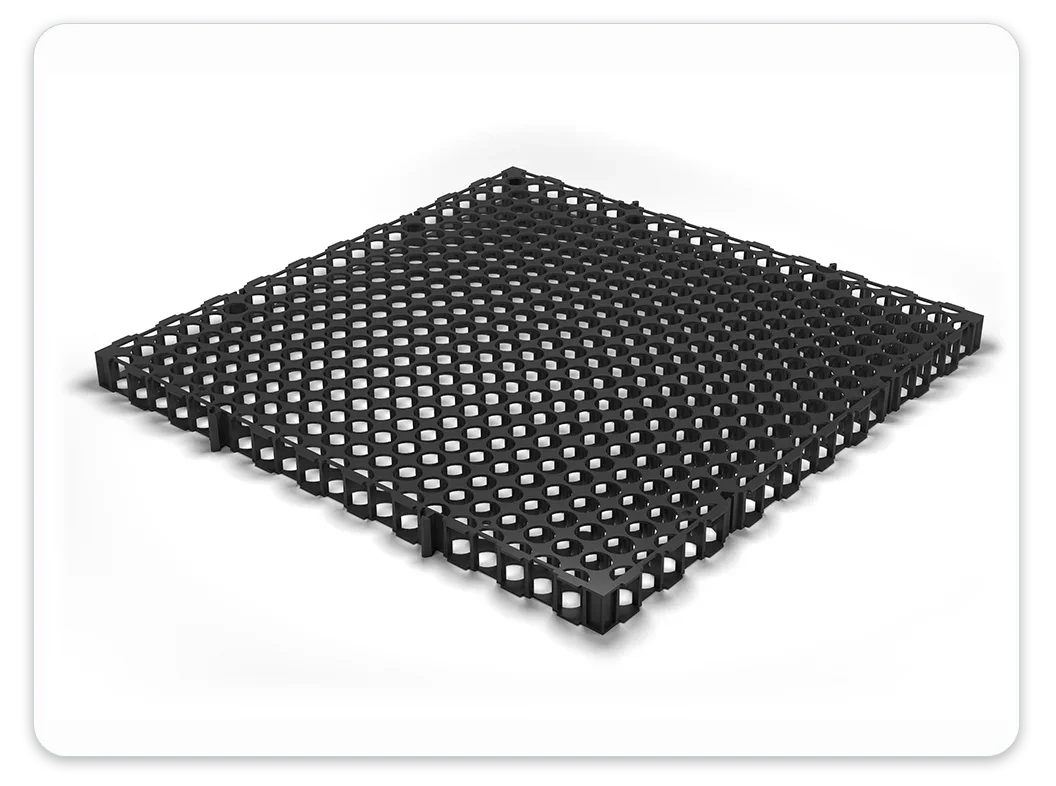

AUSDRAIN DRAINAGE CELL
Used for managing dropped edge beams and internal step-downs within the slab.
Available in 30mm and 50mm
